    Washing Machine Valve DIY Repair

    by Eric · This post may contain affiliate links, its one way we pay the bills. · 6 Comments

    Here's a washing machine valve DIY repair I did when I had to move a washing machine last week. I took some photos of how I did it to show you all.

    washing machine valve repair

    Behind most washing machines is a set of valves called the washing machine shutoff valves. This makes it easy to hook up a washing machine to the house water supply. There are two shut off valves, for the hot and cold water. Hint: when connecting or disconnecting the hoses from these valves, mark which hose is hot and cold. I often switch them and have to redo the hookup.

    As I was ready to disconnect one of the shutoff valves, I discovered the valve was leaking. It wouldn't shut off, and water sprayed when I attempted to remove the supply hose. Bad thing. I went into the basement and found the supply pipes leading to the washing machine valves, and shut them off.

    washing machine valve repair

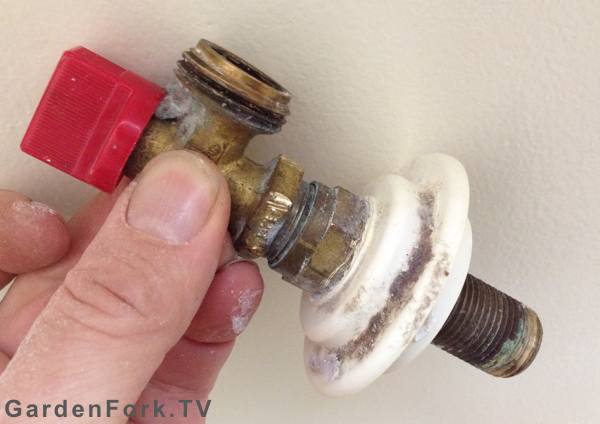

    I then tried to remove the broken valve from the pipe coming up through the shutoff housing, but it wouldn't turn. So I carefully cut out some of the drywall below the valve so I could see if the pipe was soldered on or was threaded. Thankfully it was threaded, and I could slip a wrench in and remove the valve and the stub of pipe.

    washing machine valve repair

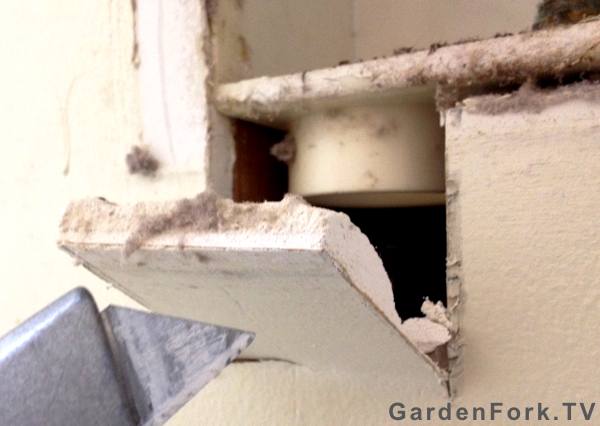

    Note how I used a utility knife to cut down on two sides and pried open the drywall. This allowed me to use the bottom of the drywall piece as a hinge and put it back in place easily. Some hole filler took care of it after that. This rig sits behind the washing machine, so the repair doesn't have to look amazing.

    washing machine valve repair

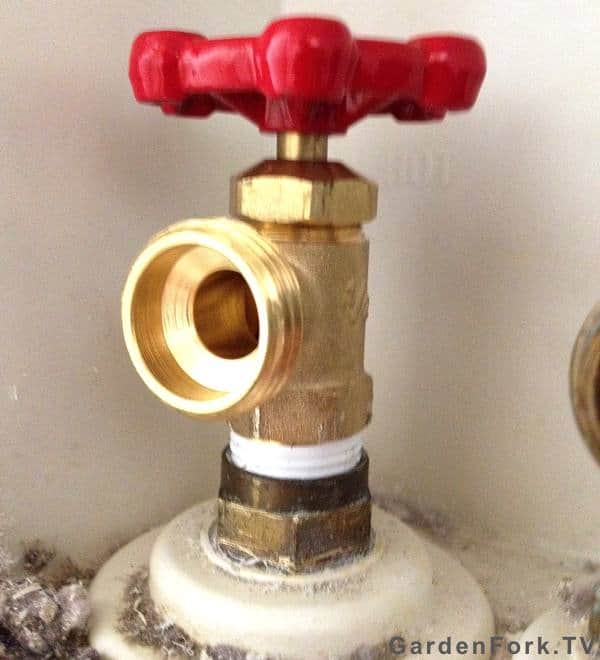

    Once I got this out of the housing, I could get two wrenches on it and remove the broken valve. I replaced the broken valve with what I call a boiler drain valve, but it works perfect for this application, it has the same garden hose style threads, and its made of brass. Some teflon tape and pipe thread paste, and its was back in its place.

    washing-machine-valve-diy-repair-6

    « Daniel Delaney on Pie Crusts and more - Archive Show
    Ramen, Wolf Hall, & Your House On Batteries GF Radio 375 »

    Reader Interactions

    Comments

    1. Kael Drake

      December 29, 2015 at 1:45 pm

      I really liked your post! My washing machine has been acting up lately, and I think that it has something to do with the valves being clogged. I think that your post is going to help me to fix the problem! I really liked that you included pictures to go with what you have written. This is going to help me a lot, because I'll be able to compare my progress to yours! I'm going to try this as soon as possible so that I can get my washing machine working well again! Thank you for the help!

    2. Eric

      January 08, 2016 at 2:24 pm

      @Kael glad we could help, these valves can clogged with minerals and silt in the water line and affect the washer. thx!

    3. Barbara Walsh

      February 15, 2017 at 9:25 am

      My son recently replaced the boiler drain valves for the washing machine and I noted after he had done the work that there was a little note on the attached tag that said they contain lead and other chemicals known by the state of California to cause cancer. Is this something I should be concerned about? Should I order lead free boiler drain?

    4. Eric

      February 15, 2017 at 3:09 pm

      I would not be concerned, I have the same valves in my house. Many plumbing valves made of brass have some lead in them.

    5. Todd Wilcox

      June 12, 2022 at 5:59 pm

      Your picture (first one at the top) is the only one I can find online that has red blue valves that look like mine, instead of having one side that sticks out a lot. I am trying pretty hard and I can't get them to budge. Is there a trick to it?

    6. Todd Wilcox

      June 13, 2022 at 4:41 pm

      Nevermind. I got it. Thanks for the videos - very helpful to the otherwise hopeless crowd.
